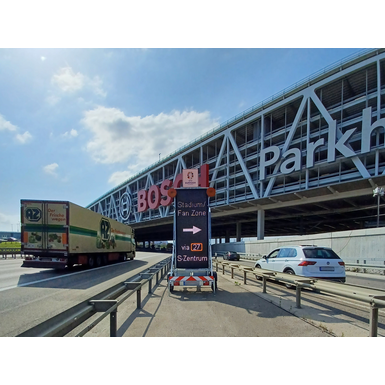

VWA SingleBoard 56x144 Frank.

1 continuous active LED variable message sign with lens technology
- Full matrix version
- RGB full-colour, 16.7 million colours can be displayed
- Frame rate 15-60 /min, selectable
- Automatic brightness adjustment
- 9 additional brightness levels selectable
- Each point is freely programmable
- Display of graphics and/or text
- 56x144 pixels
- optically as upper and lower panel with respective additional text
can be displayed in the prescribed size according to RSA21 and M-TI
- refresh rate 1000Hz

Electromotive lifting and lowering device of the
complete LED panel
- incl. electromotive locking of the complete panel
when lowered and raised
- When lowered, the board is positioned so that
the LED display surface is facing the floor, the
stable, corrosion-resistant rear of the housing is directed
upwards; the LEDs are thus protected from
weather conditions such as sun, rain or snow

Tablet for operating all functions (WLAN)
- 8-inch touchscreen display
- Approx. 20 hours operating time
- Backlight
- Drop-proof up to 1.2 m
- (lxwxh) 241 x 128 x 10 mm
- incl. charging holder 12V
- Protection class IP68
- Including protective cover and stylus for operation with
gloves
- Including creation programme for traffic signs,
Transfer programme and VZ library on download link

Chassis
- Maintenance-free AL-KO rubber spring axle, hot-dip galvanised
- Height-adjustable, hot-dip galvanised drawbar
350 - 1,100 mm, AL-KO model
- DIN towing eye and ball coupling
- 2 rear drop supports, self-locking, hot-dip galvanised
- Height-adjustable support wheel at the front
- Parking brake
- Permissible total weight 750 kg
- Rear underride guard made of RA2C film

Battery and control box made of galvanised sheet steel, cover made of
Aluminium chequer plate
- 2 pcs. Bracket for accumulator up to 230 Ah (20h)
- 2 pcs. Lead-acid batteries 12V-/230 Ah built-in
- 1 pc. fully automatic LEAB charger 12V-/30 A
built-in
- Main switch to protect the electronics

Technical data:
- Permissible total weight 750 kg
- Tare weight approx. 640 kg
- Length (steered drawbar) approx. 4,430 mm
- Width approx. 1,800 mm
- Height, folded down approx. 1,310 mm
- Height, raised approx. 3,660 mm

Note: Due to the extended LED board, this trailer
cannot be loaded onto the standard FA1LR 16.25 without further ado.

Vehicle lighting 12 VDC with 13-pin vehicle plug
incl. TÜV approval and vehicle registration document
