FAHRB.ABSPERRT.FA 1/LPDP/FEUER

Item No. 259231-OK

Suitable for:

Fire department

FA 1 KLF with small loading area VZ 616-40

Mobile barrier panel for use on roads without oncoming traffic
Mobile barrier panel according to TL barrier panels
Illuminated arrow system according to TL warning lights

All product details

The execution is in accordance with the publication of the technical construction description for traffic safety trailers (VSA) issue 01/2012 of the Bavarian State Ministry of the Interior and the regulations of the StVZO, StVO, ZTV-SA, RSA, work equipment usage regulations and TL barrier boards.

Mobile barrier panel for use on roads without oncoming traffic
Mobile barrier panel according to TL barrier panels
Illuminated arrow system according to TL warning lights
Free lateral loading/unloading
Galvanised sheet steel drop sides
Floor: waterproof glued, non-slip screen printing plate 18mm
Technical data: Total length: approx. 3,700 mm, total width: approx. 2,280 mm, height of top panel lowered: approx. 2,600 mm. Height of top panel when raised: approx. 3,980 mm Vehicle frame overhang angle - front : approx. 19 ° - rear : approx. 29 ° Ground clearance: approx. 210 mm Drawbar load: approx. 75 kg Height adjustability: approx. 300 mm to approx. 1,050 mm Free drawbar length at highest setting: approx. 1,400 mm Permissible total weight: 750 kg Payload: 200 kg
2 MS340 LED strobe directional spotlights, 24 RS2000 LED directional spotlights Cable remote control - electromotive rotating arrow - Foil type RA2C - electrom. Raising/lowering of the upper panel - VZ101 "Fire brigade" on upper panel - 2 viewing windows in lower panel
Folding warning sign, electromotive raising/lowering of the top panel with maintenance-free lifting spindle motor. Automatic non-positive locking in lowered and raised position. Operation via remote control. Manual operation guaranteed in case of power failure. 2 viewing windows in the lower part of the warning panel, lamella shape, can be opened/closed centrally from both sides.
Warning sign 3,600 x 2,200 mm, hatch width 500 mm, hatches red/white Foil type RA2C, microprismatic - VZ 222 Ø 1,500 mm Foil type RA2C, microprismatic VZ 101 with inscription "Feuerwehr" SL 900 mm in illuminated arrow triangle; foil type RA2C, micro-prismatic
Battery tool box bxtxh) 1,870 x 450 x 350 mm - Fully automatic LEAB charger 12V/30 Ah - 1 battery 12 V/90 Ah with forced ventilation
Rotating arrow set - arrow adjustable by electric motor - Arrow positions: passing left, passing right, centred
1 pc. cable remote control with 20 m cable length - Holder for remote control in battery box (alternatively also available as radio remote control for an extra charge)

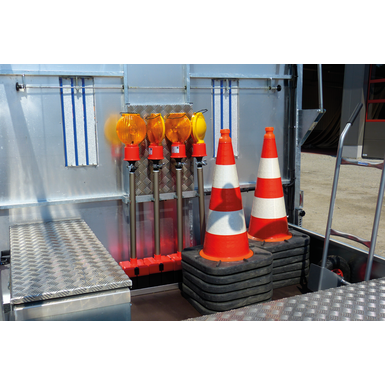

- Loading area (lxw) 1,160 x 1,800 mm - Drop sides 400 mm
2 Guide cone holder
o n e additional unit box !
