Collapsible traffic management system - PolVIS TXT

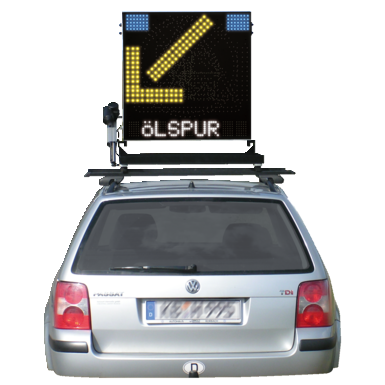

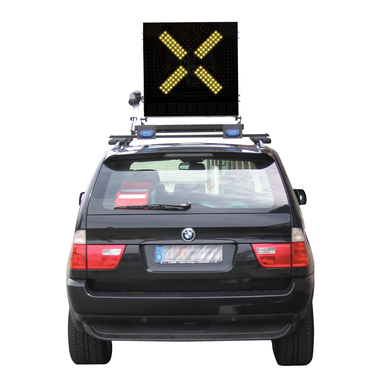

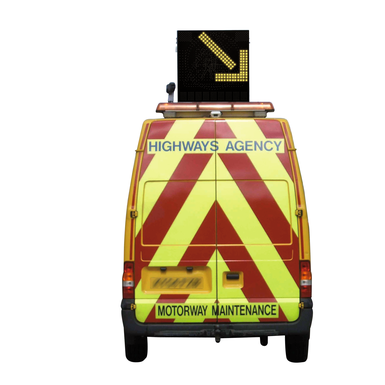

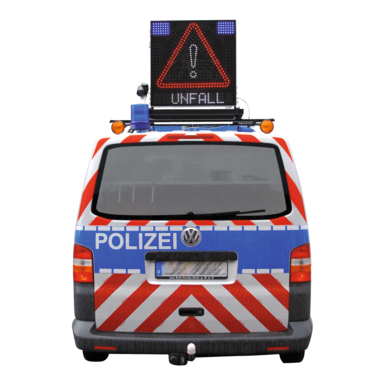

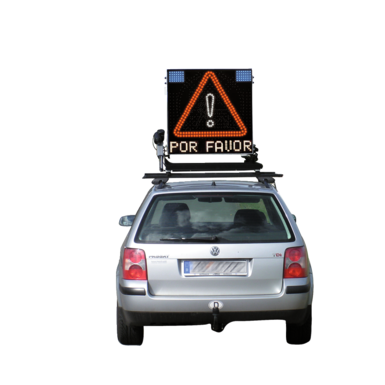

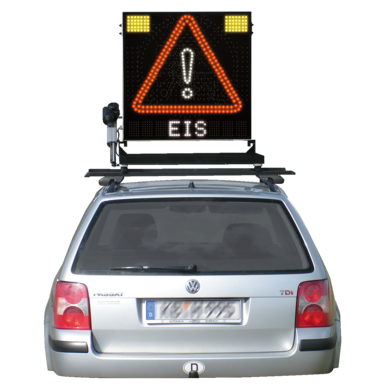

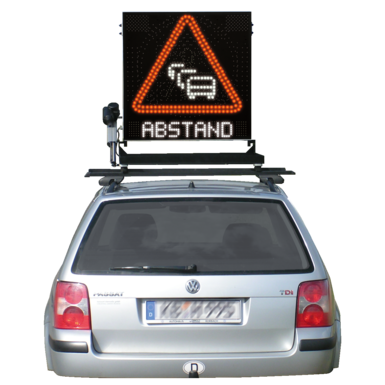

LED VMS for roof top mounting
- Examined by the German BASt (German Federal Highway Research Institute)
- photometric type approved by the German BASt according to EN12966
- EMC approved
Quick and safe operation as well as prompt display of situation-specific traffic and warning signs - even under stressful conditions: the PolVIs TXT meets these requirements with a straightforward solution: each button on the remote control fulfils a single display function!
Up to 11 traffic signs and / or texts are pre-programmed according to your requirements - in addition, you can choose between blue or yellow LED flashes in the upper corners of the LED Matrix.
The programmed texts and signs are each assigned to a single button on the remote control, thus reducing the risk of operational mishaps to a minimum - even in "hectic" situations.
In addition, the currently displayed message on the LED panel is shown on the LCD display which is integrated in the remote control.
The horizont PolVis TXT has been examined by the experts of the German Federal Highway Research Institute (BASt) with regard to the design, visibility and brightness of the displayable signs.
- Examined by the German BASt (German Federal Highway Research Institute)
- photometric type approved by the German BASt according to EN12966
- EMC approved
- memory capacity for 11 traffic signs and / or texts
- suited for all customary roof racks with square support tubes
- Fits all standard roof racks with square support tubes

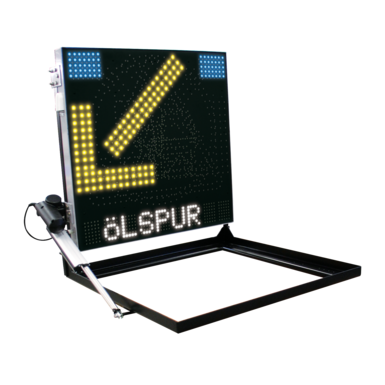

- collapsible LED VMS for roof top mounting
- not phantom light due to sunlight or other light irradiation
- high performance LEDs in red, amber, white and blue
- with either amber or blue flashers in the upper corner of the LED matrix
- starting and operation can be done from the driver's cabin
- supply voltage 12V
- electronic lifting / lowering device
- flat frame made of stainless steel, powder coated black
- remote control with LCD display and 15 keys
- {11 keys can be pre-programmed ex-factory with the following traffic signs or text} - Caution - Queuing - No overtaking, cars - No overtaking, trucks - Road works - Arrow, keep left - Arrow, keep right - Cross - choice between amber or blue integrated LED flashers (in addition to traffic signs and texts)
- texts up to 9 characters can be displayed alternating on two layers: e.g. Caution <> Oil spill or Keep <> Distance
- flashing and steady light
- automatic or manual adjustment of light intensity
- No overtaking, VZ 276
- No overtaking lorries, VZ 277
- Construction site, VZ 123
- Arrow, passing on the left, VZ 222-10
- Arrow, passing on the right, VZ 222-20
- Texts with up to 9 characters can be displayed in two levels each: e.g. VEHICLE <> CONTROL, DISTANCE <> STOP, STOW
- Flashing light, continuous light, moving images, adjustable by placing on two levels
